10AME-10" Single Shallow Sealed Downfire

In stock
SKU: 10AME
Regular price $86.40

Product details

  • SKU 10AME
  • Barcode 636644600155

Did you know Atrend builds custom boxes? Head over to our Build your Box page for more information

TRUCK CAB GUIDE

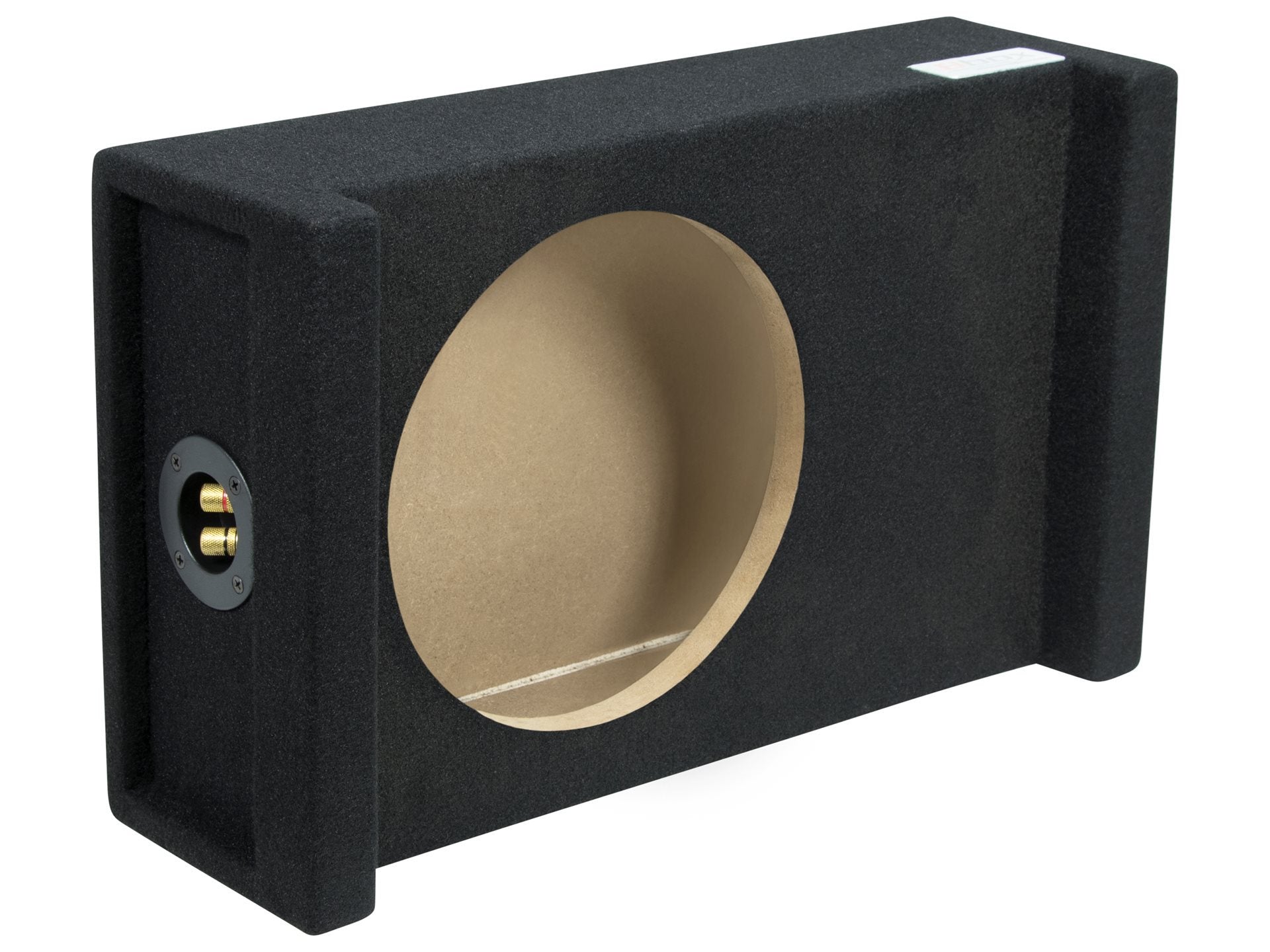

Atrend 10AME 10” Single Sealed / Shallow Mount / Down Fire Subwoofer Enclosure

  • Pro Tuned 10” Single sealed, down fire, shallow mount subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
  • ¾.” High-Grade MDF Front Baffle for Ultimate structural rigidity and no-flex construction.
  • 0.47 Cubic Feet Net Volume internal air space is ideal for tight accurate bass reproduction.
  • CNC Miter & Dado design and construction for the ultimate in an airtight precision fit of all parts which ensures a rattle and noise-free environment.
  • Recessed Side Panels increase structural integrity, eliminates unwanted flex and vibration.
  • Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
  • Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
  • Premium OEM Grade Carpeting for factory look and durability.
  • Enclosure Dimensions Sub cut out: 9.125”, mounting depth: 4.125”, Height: 12”, Width: 19.75”, Depth: 6”
Box Depth (Width x Height x Depth)
Volume Per Sub. (Net Vol. Per Sub)
Tuning Frequency (HZ)
Subwoofer Mounting Depth(Inches)
Outside Finish Materials
Material Thickness of Box (Inches)
Additional Notes
