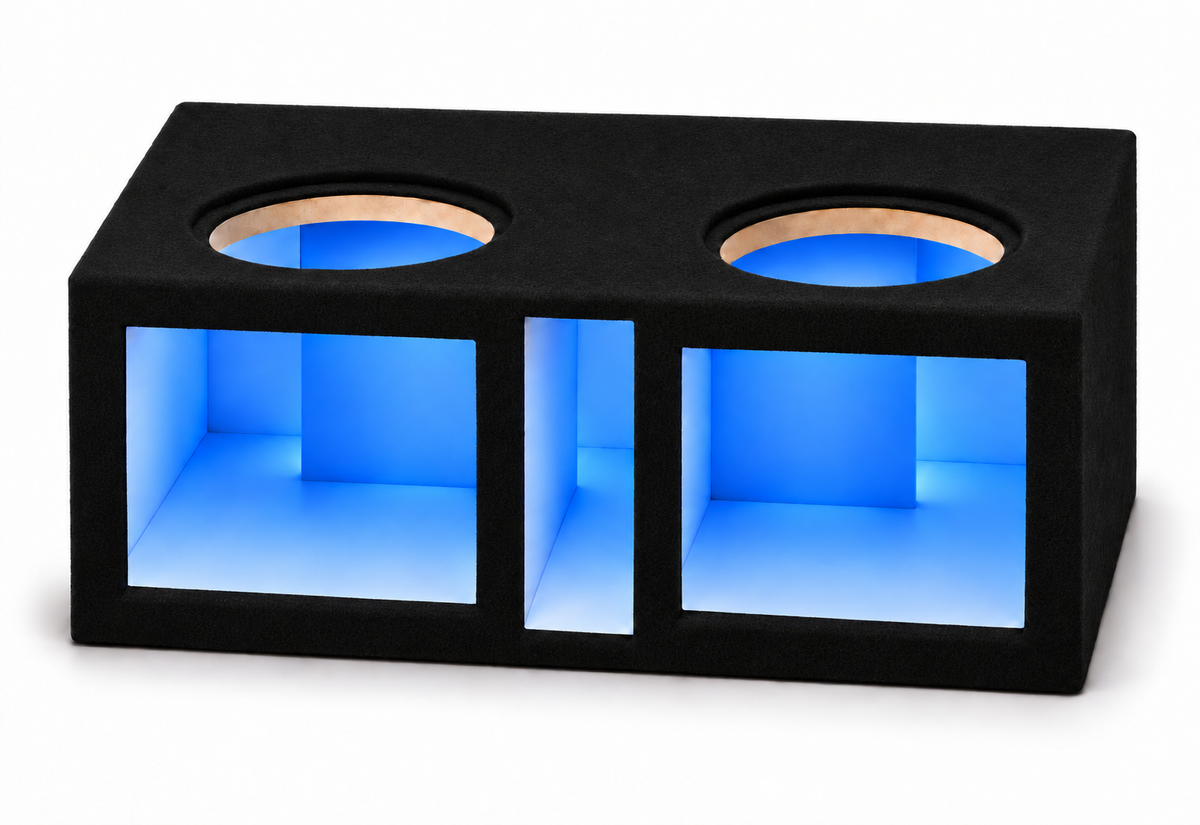

12HH-DVL | Heavy Hitter LED Dual 12-Inch Vented Subwoofer Enclosure
Regular price
$850.00
Free delivery
Continental U.S. orders ship free.
Built in the USA
Made by Atrend with 30+ years of enclosure experience.
Secure checkout
Pay safely with major cards, PayPal, Shop Pay, and more.
Couldn't load pickup availability
Product details
- SKU 12HH-DVL
Did you know Atrend builds custom boxes? Head over to our Build your Box page for more information
ATREND HEAVY HITTER LED SERIES
Dual 12-inch. Serious bass presence.
The centerpiece for a serious daily bass system. The 12HH-DVL combines an up-firing subwoofer layout, front-facing venting and a windowed, illuminated interior in a clean black-carpet enclosure.
Built to be heard. Designed to be seen.
The Heavy Hitter LED Series brings show-quality visual detail to the high-output subwoofer enclosure. A white-painted interior spreads the multicolor LED glow behind clear acrylic, while black carpet gives the exterior a clean, understated finish. Choose your lighting with app and remote control; the blue shown in the images is just one color setting.
This dual 12-inch configuration is intended for high-output and SPL-focused systems. Match your exact subwoofer to the enclosure volume, cutout, mounting depth and internal clearance before selecting your build. Subwoofers are not included.

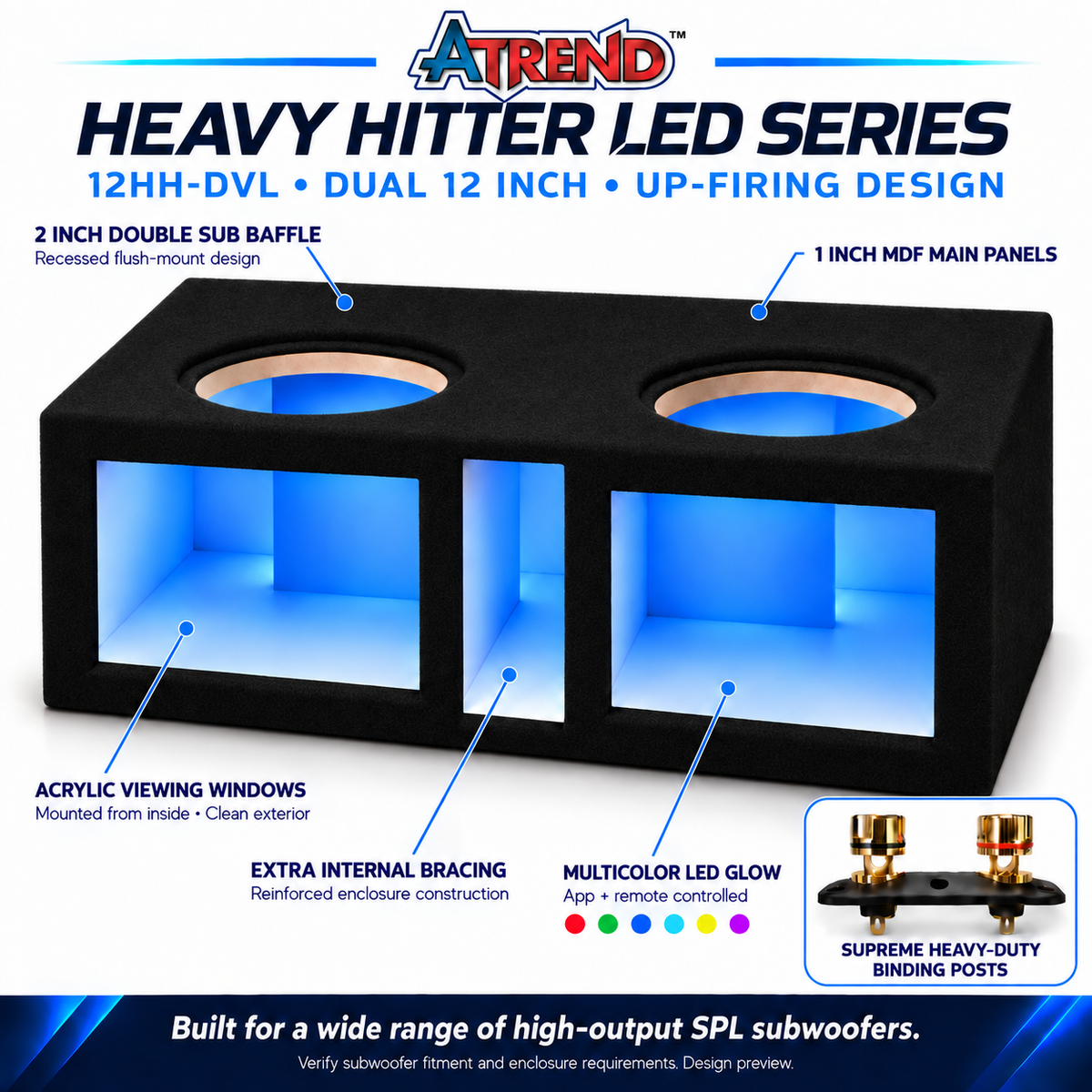

Construction that supports the build
- 2 inch Double Sub Baffle: two 1-inch MDF layers with a 0.75-inch flush-mount recess.
- Heavy-duty MDF construction: 1-inch main panels with 0.75-inch sides and vent walls.
- Extra internal bracing: 45-degree triangular corner bracing.
- Clean acrylic installation: windows mounted from inside on a supporting lip, without exposed exterior fasteners.

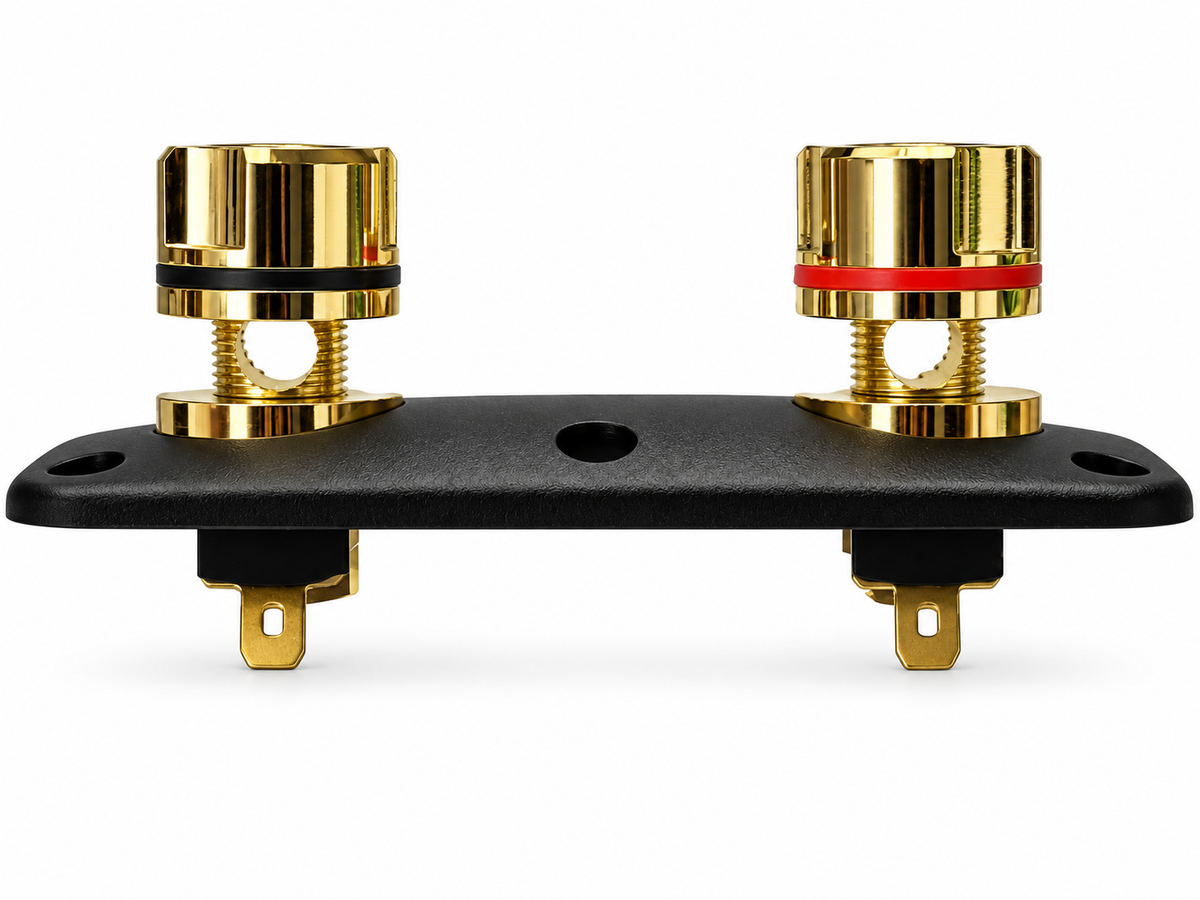

- Supreme terminal cup: heavy-duty binding posts for your speaker connections.
- Black carpet and white interior: a dark exterior paired with an illuminated viewing area.

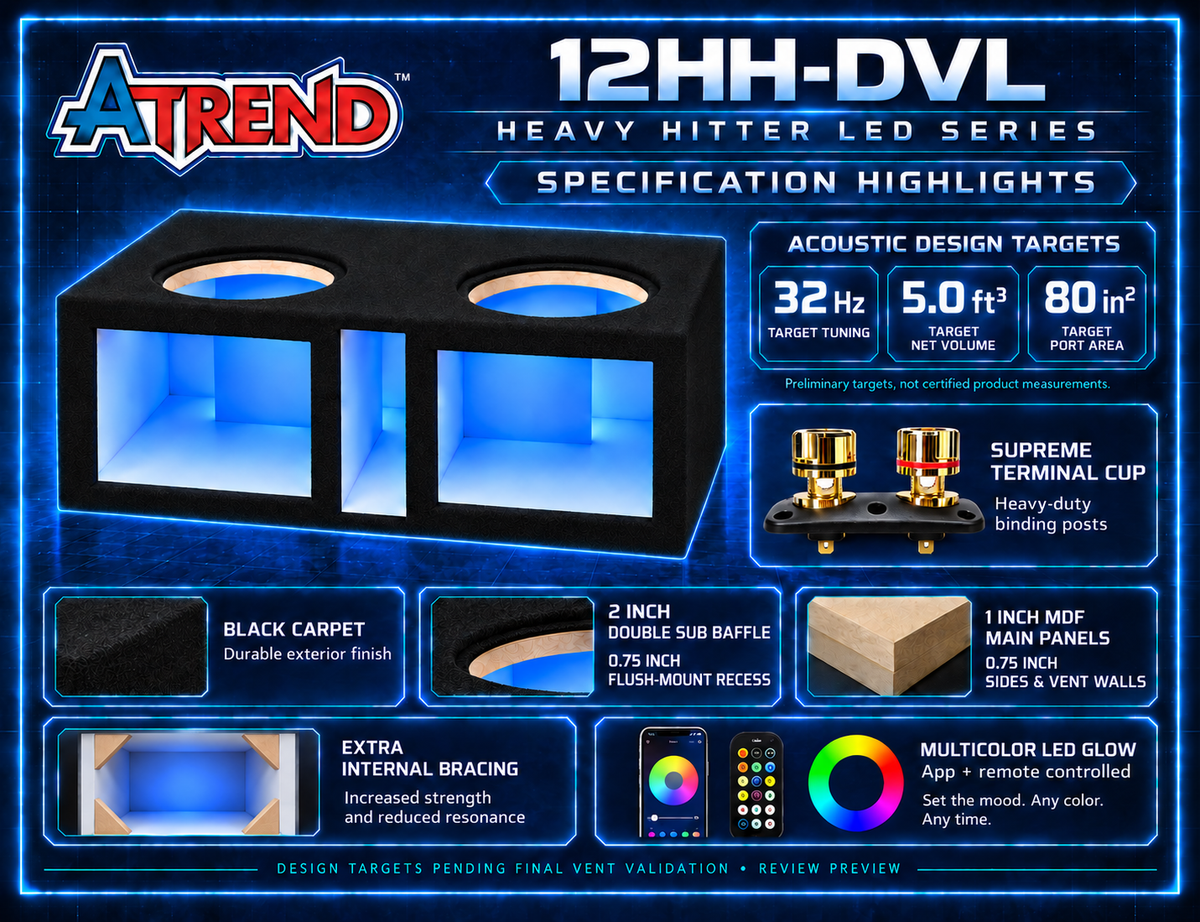

Model specifications
| Model | 12HH-DVL |
|---|---|
| Configuration | Dual 12-inch, up-firing |

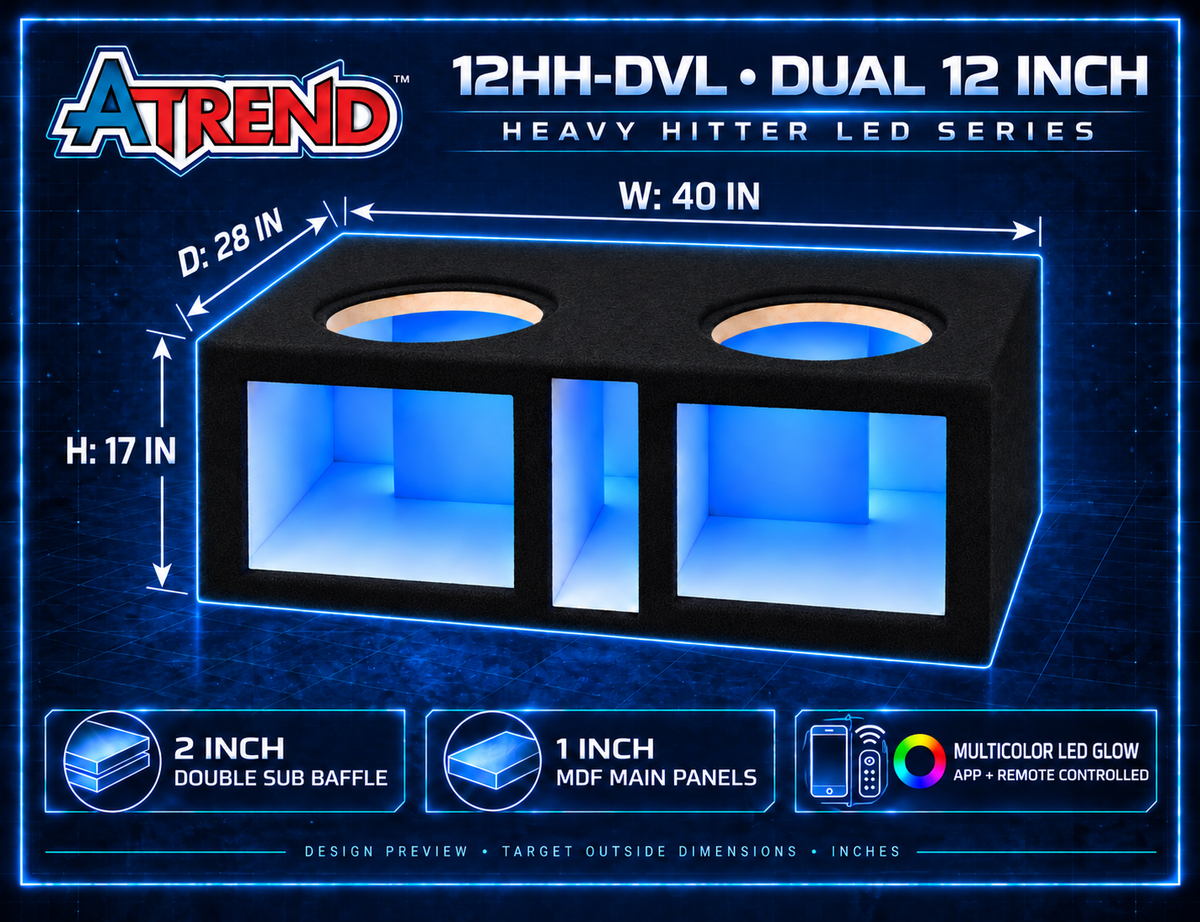

| Outside size target (W × H × D) | 40 × 17 × 28 inches |
| Tuning target | 32 Hz |
| Total net volume target | 5 ft³ |
| Total port area target | 80 in² |
| Top baffle / recess | 2 inches total / 0.75 inch recess |
| Lighting | Multicolor LED; app + remote control |
| Exterior / interior | Black carpet / white painted interior |
Design preview: dimensions and acoustic values are preliminary targets, subject to final enclosure validation. Images illustrate the planned LED design.
Choose the right fit
Nominal subwoofer size alone does not guarantee fit. Check the basket cutout, outside frame diameter, recessed mounting seat, installed motor depth, pole-vent clearance and the driver manufacturer’s enclosure recommendations. The up-firing driver must clear both internal vent baffles. Contact Atrend with your exact subwoofer model for fitment guidance.
Enclosure only. Subwoofers and amplifier are not included.
