A202-10CPV - 10" Dual Vented Carpeted Dodge Ram Quad Cab-Crew Cab 2002-2018 upfire enclosure

TRUCK CAB GUIDE

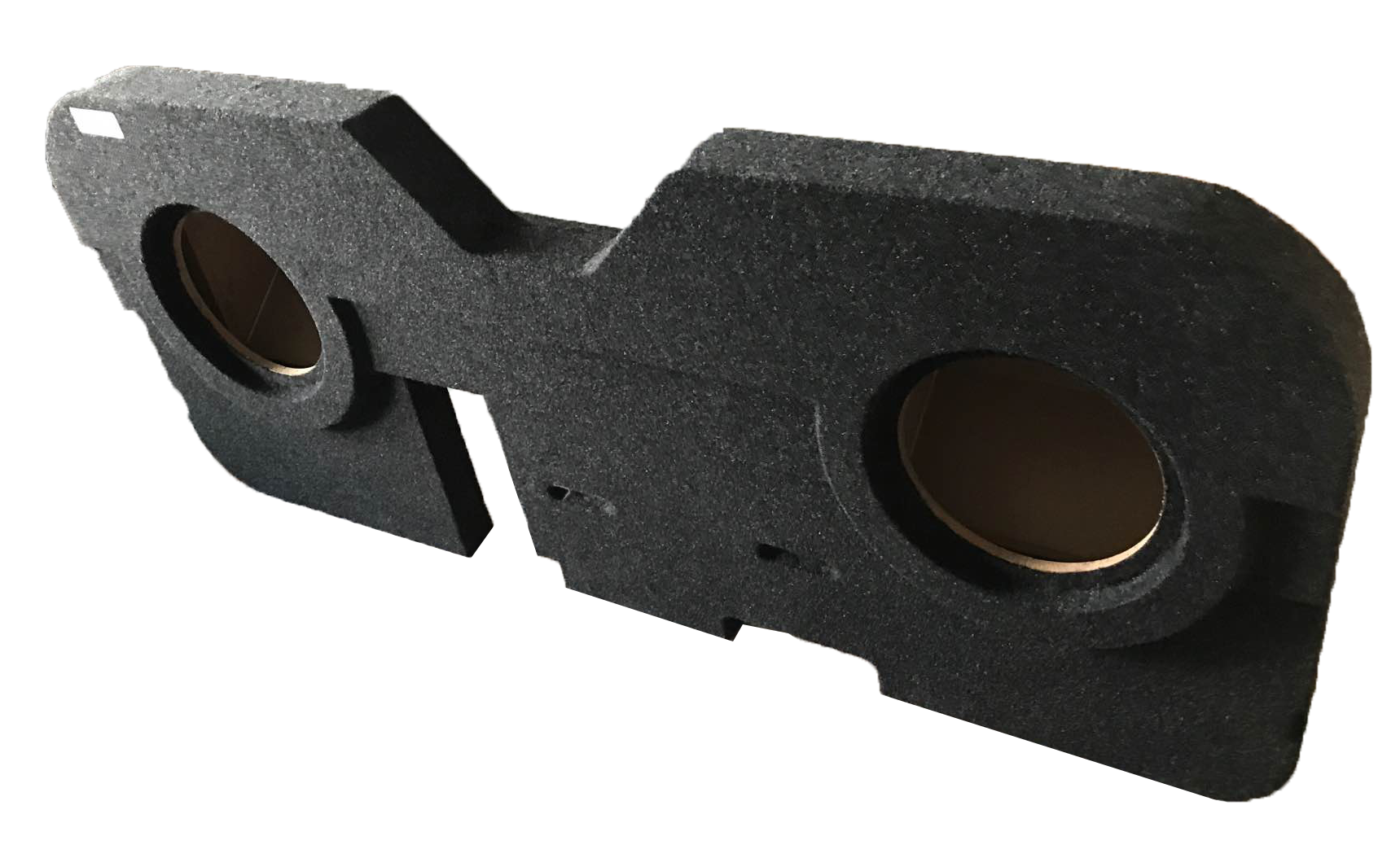

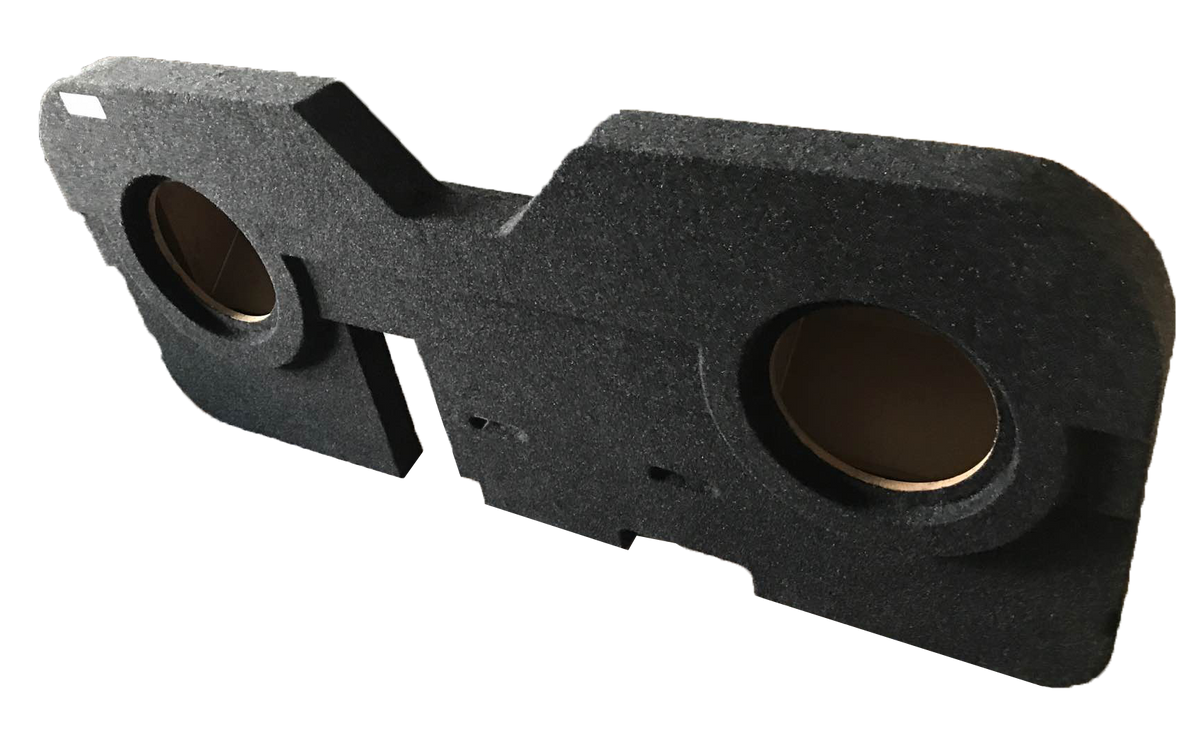

Bbox A202-10CPV Dual 10” Vented Subwoofer / Up-Fire Enclosure Fits 2002-2018 Dodge Ram Quad Cab

• Accu-Tuned 10” Dual Vented subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
• OEM-Fit is designed and engineered specifically for the 2002-2018 Dodge Ram Quad Cab trucks to ensure an OEM fit without impeding the operation of the back seat.
• High-Grade MDF for Ultimate structural rigidity and no-flex construction.
• Premium OEM Grade Carpeting for factory look and durability.
• 0.9 Cubic Feet Net Volume divided internal air space per sub is ideal for tight accurate bass reproduction.
• 41Hz Tuning Frequency for low tight and accurate bass reproduction.
• Subwoofer Mounting Depth is 8” which is ideal for standard to lower profile subwoofers.
• Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
• Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
• Dimensions Sub Cut Out: 9.125”, Mounting Depth: 8”, Height: 9”, Width: 57.25”, Depth: 24.75”
