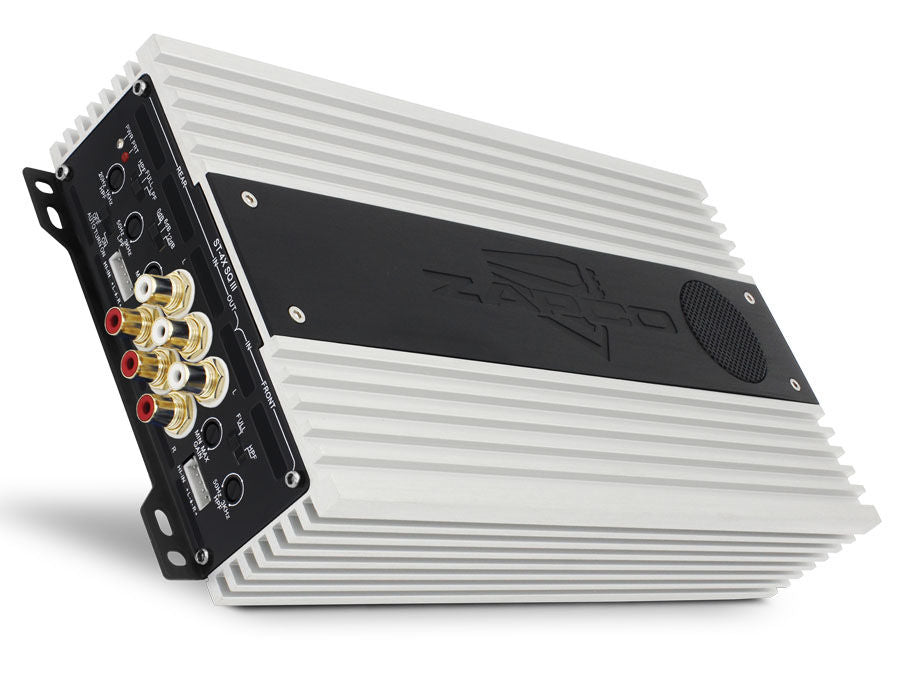

ST-4X SQ III - 4 Ch. Sound Q Class AB Amplifier
Features and Function
-
4-Channel, Full Range, Class A/B
-
SQ Upgrades: Op-amps, Caps, Etc.
-

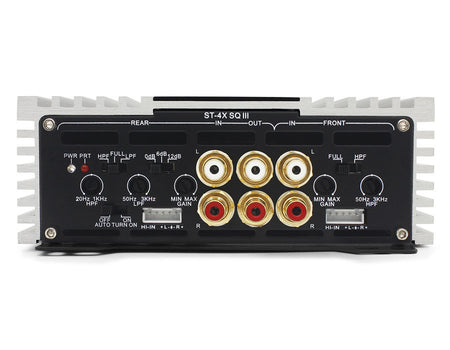

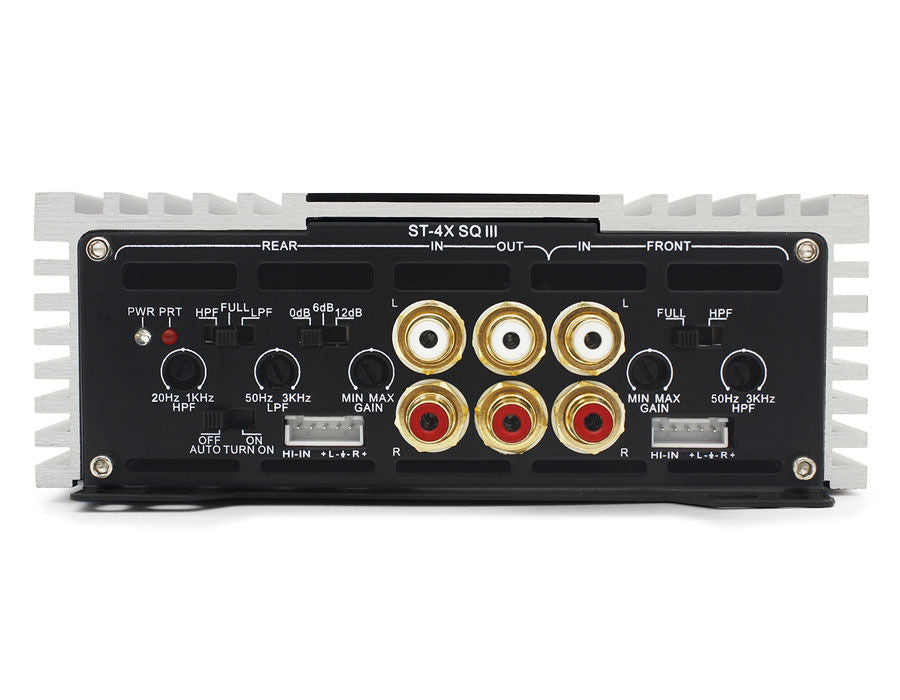

Tiffany style Panel Mount RCA’s
-
RCA and Speaker Level Inputs
-
Variable input gain control
-
Variable electronic crossover
-
Auto-on with Speaker level inputs
-
New aluminum chassis
Specifications
-
Power @ 4Ω: 4 x 70 watts
-
THD @ Rated Power < 0.1% THD
-
Power @ 2Ω: 4 x 95 watts
-
Power Bridged @ 4Ω: 2 x 190W RMS
-
Signal to Noise Ratio > 95dB
-
Channel Separation >60dB
-
Frequency Response 15Hz to 30KHz ±1dB
-
Input Sensitivity .25v to 5v
-
Dimensions in mm: 160(W) x 58(H) x 300(L) Overall: 160(W) x 58(H) x 325(L)
